Location: Edmonton, Alberta, Canada

Status: New

Brand: Allmand

Model: Maxi-Lite

Stock No.: GPS9374

kW: 8

Year: 2025

Description: Quantity of two left here in Nisku,

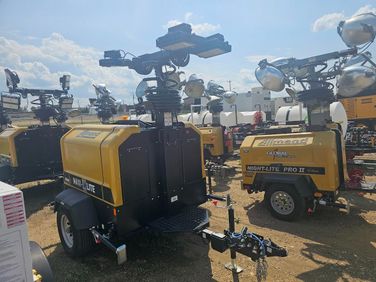

The Maxi-Lite® is Allmand’s premium light tower containing the most durable job site features commonly required in heavy construction, oil and gas, and mining applications, where rugged usage is the norm.
Sequenced Light System (SLS™)
100 Gallon Polyethylene Fuel Tank
Fluid Containment System (FCS)
Stabilizers
Gull-Wing Style Doors
Vertical Tower
Standard LED 4 or 6 Light Fixtures
350W high performance SMD style LED light fixtures.

Engine Brand
Kubota
Engine Model
D1105
Output @ Rated Speed (1,800 RPM) - HP****
11.6
Engine Prime Power (kW)**
8
Engine Tier
Tier 4 Final
Fuel Capacity - gal (L)
100 (379)
Light Type - LED
SMD Style LED, 5000° K Color Temperature
LED Wattage (per lamp)
350
LED Lumens (per lamp)
57,140
LED Lumens (total)
228,560 - 4 Lights / 342,840 - 6 Lights
Operating Time - using four 350W LED light fixtures (hrs)***
200
Operating Time - using six 350W LED light fixtures (hrs)***
181.8
Light Type - Metal Halide (Optional)
Metal Halide SHO-HD® fixture
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (per lamp)
135,500
Metal Halide Lumens (total)
542,000 - 4 Lights / 813,000 - 6 Lights
Operating Time - using four 1,250W Metal Halide light fixtures (hrs)***
137
Transport Height (Mast Lowered) - in (mm)
105 (2,672)
Operating Height (Mast Raised) - in (mm)
332 (8,179)
Transport Width - in (mm)
77 (1,956)
Operating Width (Outriggers Deployed) - in (mm)
151 (3,835)
Transport Length - in (mm)
126 (3,200)
Operating Length (Outriggers Deployed) - in (mm)
168 (4,265)
Operating Tower Wind Speed Rating - MPH (km/h)
55 (88)
Trailer Weight - lbs (kg)
3,430 (1,556)
Trailer GVWR - lbs (kg)
5,000 (2,267)
