Location: Edmonton, Alberta, Canada

Status: New

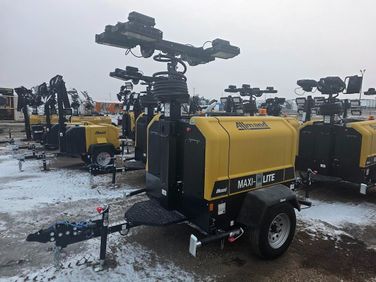

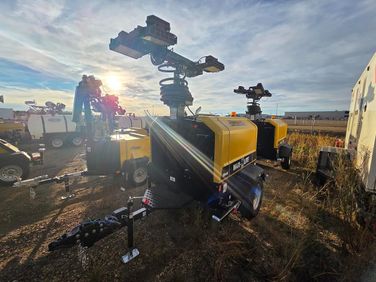

Brand: Allmand

Model: Maxi-Lite

Stock No.: GPS9475

kW: 20

Year: 2025

Description: 350W SMD LED Lighting

228,560 to 342,840 Total Lumens

Up to 277 Hour
Operating Runtime
Engine Brand
Isuzu
Engine Model
4LE2T
Output @ Rated Speed (1,800 RPM) - HP****
40.2
Engine Prime Power (kW)**
20
Engine Tier
Tier 4 Final
Fuel Capacity - gal (L)
100 (379)
Light Type - LED
SMD Style LED, 5000° K Color Temperature
LED Wattage (per lamp)
350
LED Lumens (per lamp)
57,140
LED Lumens (total)
228,560 - 4 Lights / 342,840 - 6 Lights
Operating Time - using four 350W LED light fixtures (hrs)***
200
Operating Time - using six 350W LED light fixtures (hrs)***
181.8
Light Type - Metal Halide (Optional)
Metal Halide SHO-HD® fixture
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (per lamp)
135,500
Metal Halide Lumens (total)
542,000 - 4 Lights / 813,000 - 6 Lights
Operating Time - using four 1,250W Metal Halide light fixtures (hrs)***
137
Transport Height (Mast Lowered) - in (mm)
105 (2,672)
Operating Height (Mast Raised) - in (mm)
332 (8,179)
Transport Width - in (mm)
77 (1,956)
Operating Width (Outriggers Deployed) - in (mm)
151 (3,835)
Transport Length - in (mm)
126 (3,200)
Operating Length (Outriggers Deployed) - in (mm)
168 (4,265)
Operating Tower Wind Speed Rating - MPH (km/h)
55 (88)
Trailer Weight - lbs (kg)
3,430 (1,556)
Trailer GVWR - lbs (kg)
5,000 (2,267)
