Location: Edmonton, Alberta, Canada

Status: Used

Brand: Superior Boiler

Type: Boiler

Stock No.: 200HP

Year: 2015

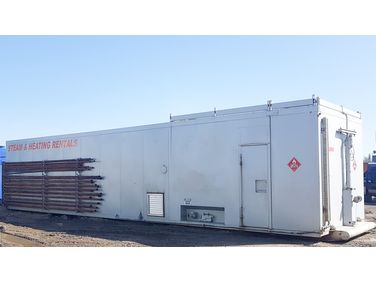

Description: This unit was built to heat large volumes of water on a temporary site. It can provide steam at a rate of 4,770 kW, or heat a liquid at a rate of 2,051 kW, or a combination of the two. The Power Flame boiler runs on No. 2 Oil or Natural Gas, providing flexibility.

The unit is ideal for plant shutdowns, sea ring heating and emergency backup for building heating. To provide flexibility, the unit contains a circulating pump for the heat exchanger, and a generator for the electrical service.

Building dimensions are 15.2×3.4×3.7 meters.

This unit is for rent or sale. Located at Arctic Boilers in Nisku, Alberta.

Boiler Details
Manufacturer: Superior Boiler Works, Inc.
HP: 200
Max Working Pressure: 1034KPA (150 psig)
Year Built: 2015
CRN W2044.2

Burner Details
Manufacturer: Power Flame
Model: C4-GO-30C
Firing rate (BTU/hr) 6,276,000
Fuel: Natural Gas / No. 2 Oil.
Max No. 2 Oil Usage: 41 Liter per hour
Max Natural Gas Pressure: 8 PSI
Max Natural Gas Usage: 240 Cubic meter per hour

Heat Exchanger Details
Manufacturer: Advanced Industrial Components inc.
Max Working Pressure: 1303 KPA
Year Built: 2015
CRN
Duty 2,051 kW

Diesel powered generator installed.

Building Details
Manufacture: Arctic Boilers & Fabricating Ltd
Volume of Water Tank: 16,310 Liter
Volume of Fuel Tank: 11,214 Liter
Voltage: 120/208v
Phase: 3Y
Amperage: 60A
Total Length: 15.2M
Total Height: 3.4M
Total Width: 3.66M
Steam connection: one 2-inch NPT with Hammer Union
Gas Connection: 2-inch NPT, 6 PSI
