Location: Edmonton, Alberta, Canada

Status: New

Brand: Multiquip

Model: DLW300ESA1

Type: Welder

Stock No.: GPSMQ300

Year: 2026

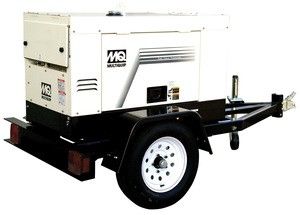

Description: The DLW300ESA1 welder/generator is a CC/CV output unit that delivers superior arc characterisitcs and consistent welding quality. Rated for 10.5kW, It is the quietest welder/generator in the industry with only 59 dBA at 23 feet. The E-mode feature improves fuel effciency by allowing the operator to weld at idle up to 160 amps, reducing operating costs and noise levels.

Delivers up to 300 amps as a welder with the convenience of 10.5 kW of AC power as a generator
Can draw simultaneous AC power while welding
Amazing voltage regulation @ 1.5% (+/-)
Tier 4 final Kubota diesel - Model D722
Arc Force control allows the operator to fine tune DC current during low voltage welding conditions which helps in preventing electrodes froms sticking during short arc length welding
Smooth arc characteristics and more consistent, quality weld penetration
E-mode improves fuel efficiency by allowing one operator to weld up to 160 amps while the engine maintains idle speeds.
SMAW, FCAW, GMAW, GTAW and ACAC welding processes
Sound attenuated cabinet reduces noise output to 67 dBA @ 23'
External fuild drains for easy maintenance
Full panel GFCI protection - OSHA and NEC compliant
Options - Wire remotes, welding cable, cable carriers, tool box, trailers, cold weather items are available for this model.

Unit Specifications
DC Voltage CC: 31 V CV: 32 V
DC Current CC: 300 A CV: 300 A
Current Range 35-300 A
Max Duty Cycle
w/ Full Amps Availible 100% @280 A
Welding Processes SMAW
FCAW
GMAW
GTAW
ACAC
Fuel Tank Capacity 9.5 gal 36 L
Fuel Consumption
at Rated Load 0.66 gph
Generator Specifications
AC Power Output
(Single Phase) 10.5 kW
Cycle 50/60 Hz
Voltage 120/240 V
Amperage 87/44 A
Voltage Regulation 1.5 %
Receptacles NEMA 5-20R 125V GFCI 20A
NEMA L5-30R 125V Twist-Lock 30A
NEMA L6-30R 250V Twist-Lock 30A
CS-6369 125/250VAC Twist-Lock 50A
**Optional TRLRMPXF has a built in 28 gal. fuel cell
Dimensions & Weights
Overall Length 50.8 in 1290 mm
Overall Width 26.77 in 680 mm
Overall Height 33.07 in 840 mm
Shipping Dimensions 50.78 x 26.77 x 33.07 in
1290 x 680 x 840 mm
Operating Weight 941 lb 427 kg
Shipping Weight 848 lb 385 kg
